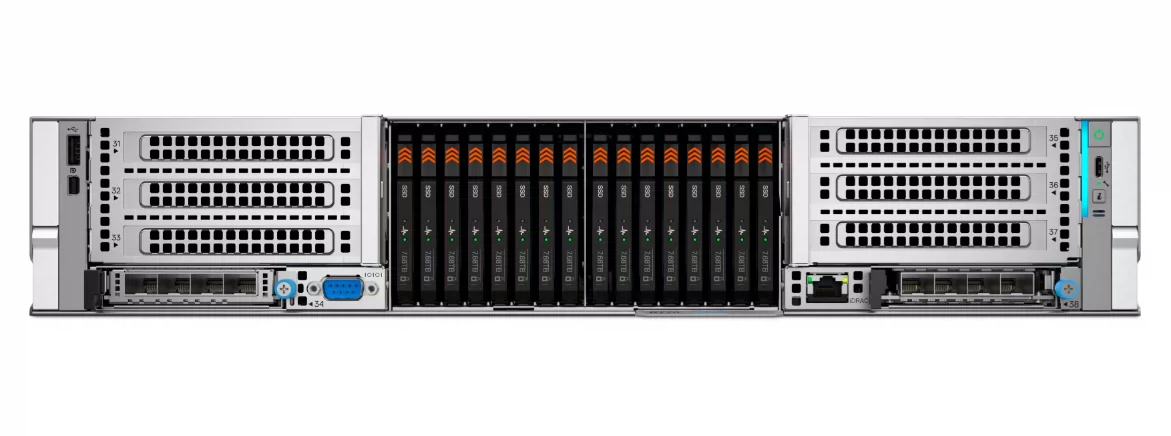

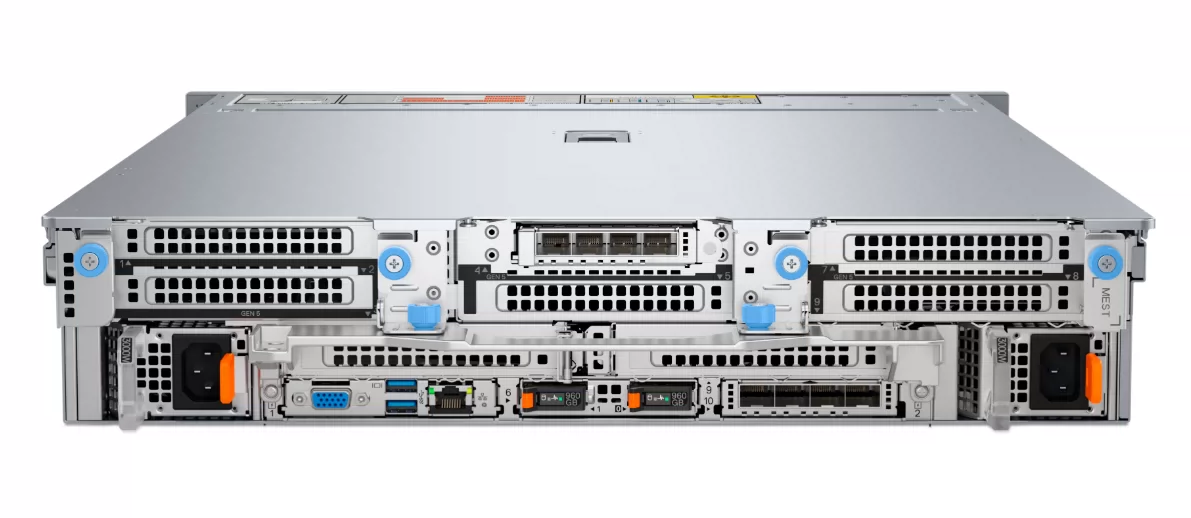

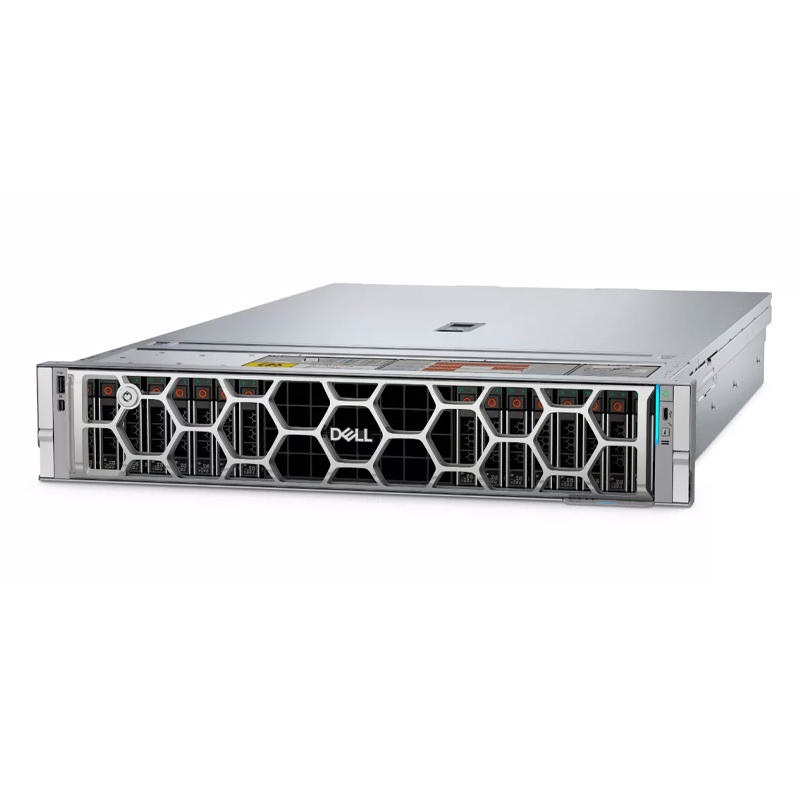

Dell PowerEdge R770 2U Dual-socket Rack Server, Virtualization Database GPU Host

Key Specifications

• Form Factor: 2U Rack Server


• Processor: 2 × Intel Xeon 6 Series, up to 144 E-cores / 86 P-cores per CPU


• Memory: 32 × DDR5 RDIMM ECC DIMM slots; Max 8TB; up to 6400 MT/s (only RDIMM supported)


• PCIe: Up to 8 PCIe Gen4/Gen5 slots, max 6 × x16


• GPU/Accelerator: Up to 6 × FHHL 75W or 2 × DWFL 450W GPUs


• Storage: Optional 2.5” SAS/SATA/NVMe or EDSFF E3.S NVMe; BOSS-N1 for boot M.2


• RAID Controller: PERC H365i / H965i / H975i


• Power Supply: Redundant 1+1 AC/DC PSU


• Cooling: Air cooling, optional Direct Liquid Cooling (DLC)


• Management: iDRAC9, Redfish, Quick Sync 2


• Dimensions: 86.8 mm(H) × 482 mm(W)


• OS Support: Windows Server, RHEL, SUSE, Ubuntu, VMware ESXi
